| IMO |
9156539 |
| Call Sign |
I.B.E.U |
| Type of Vessel |
IMO II |

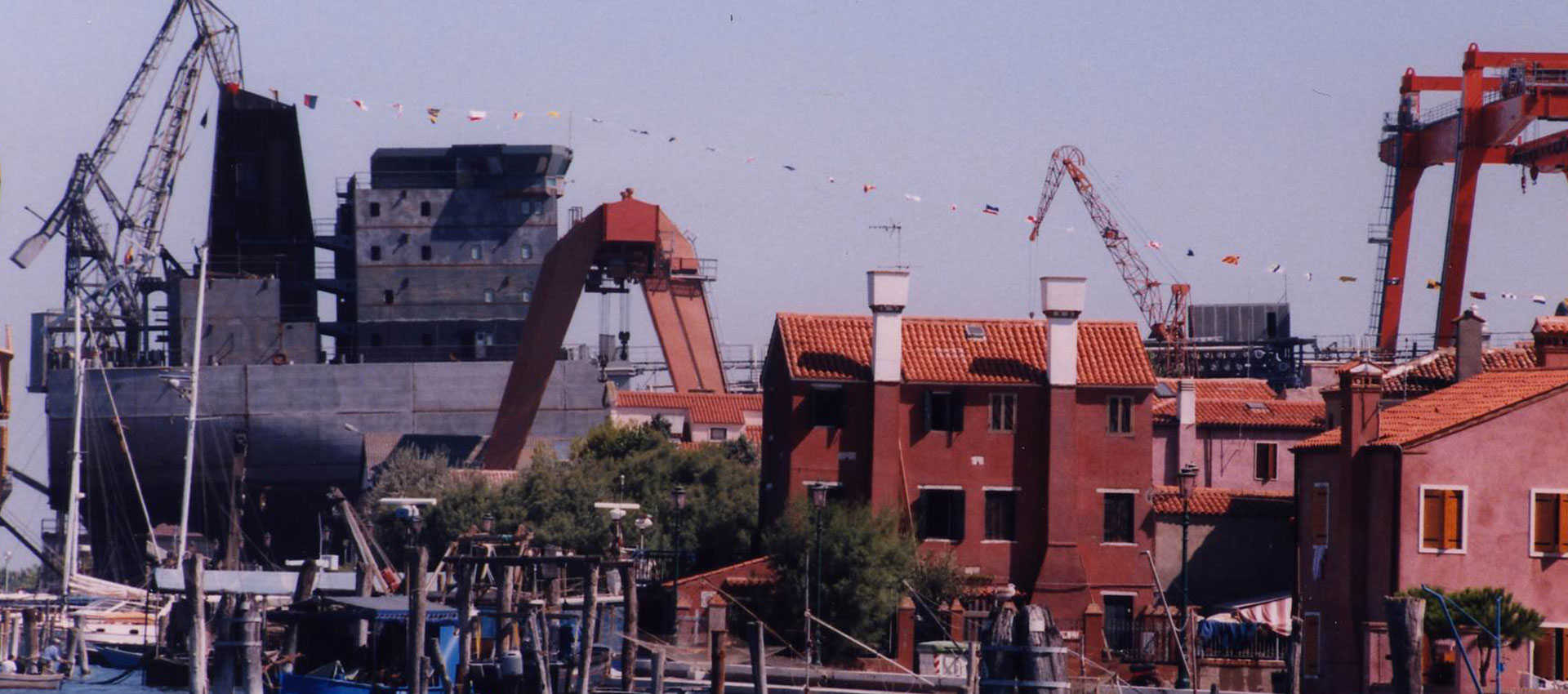

| Year Built/Shipyard |
1999 – De Poli - Venice (ITALY) |
| L.O.A. |
m. 136,0 |
| L.B.P. |
m. 126,5 |
| Breadth |
m. 23,0 |
| Moulded depth |
m. 12,25 |
| Summer Draft |
m. 8,75 |
| Summer D.W.T. |
tonn 15.200 |
| Gross Tonnage |
tonn 11.270 |
| Net Tonnage |
tonn 4.943 |
| Type of tank coating |
Enhanced Marine Line |
| Class Register |
Rina + B.V. |
| 100% Cargo tanks (with recovery and slop) |
m3 17.650,60 |
| 98% Cargo tanks (with recovery and slop) |
m3 17.297,30 |
| 100% Slop tank capacity (8) |
m3 538,10 |
| 100% recovery tank capacity (9) |
m3 370,40 |
| 100% Segregate Ballast |
m3 6.579,50 |
| Max cargo specifi c gravity |
1,5 t/ m3 |
| Vapour return line manifold |
4 x 4” midship – 1 x 4” stern |
| 100% Bunker capacity |
F.O. m3 1.251 G.O. m3 176.9 |
| 100% Fresh water capacity |
m3 983,50 |

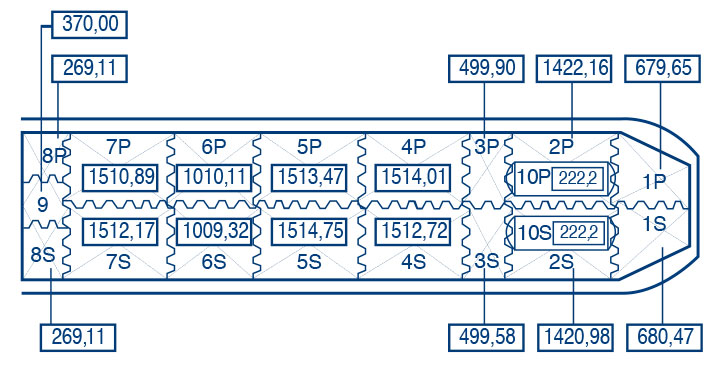

| Tank segregations |
19 (each tank) |
| Service speed |
15 Kts |
| Main Engine |
1 x MAN 6L48/60 x 6300 Kw |
| Propeller system |
1 x variable pitch |
| Diesel generator |
3 x 900 Kw at 900 rpm YANMAR |
| Electric propeller driving (APS) |
1 x 1050 Kw (speed 11 knt) |
| Boilers |
3 x diathermic oil 2.500.000 Kcal/h |
| Economizer |
1x 650.000 Kcal/h |
| Bow Thruster/Stern Thruster |
Bow 850 Hp |
| Max discharging rate |
1.800 m3 /h |
| Tank level / temperature system |
Saab Rosemont Radar System |
| Cargo heating |
Stainless steel coils – Steam |
| Cargo tank cleaning system |
BUTTERWORTH programmable type with 1 line fresh water and 1 line sea water |
| Fixed Gas Detection System |
MOSS type LFG7-22 |
| I.G.S. |
3.200 m3 h Inert gas/nitrogen |
| Cargo lines and valves materials |
Stainless steel |
| Stern lines |
2 x DN 250 + 1 x VRL |
| Cargo pumps |
FRAMO submerged Hydraulic Single stage Centrifugal 14 x 300 m3 /h at 120 mlc 5 x 200 m3 /h at 120 mlc |
| Cranes |
1 x 5 tonn for cargo hose @ midship - 1 x 2.2 tonn for service @ aft – 1 x 1.2 tonn cargo portal @ stern |

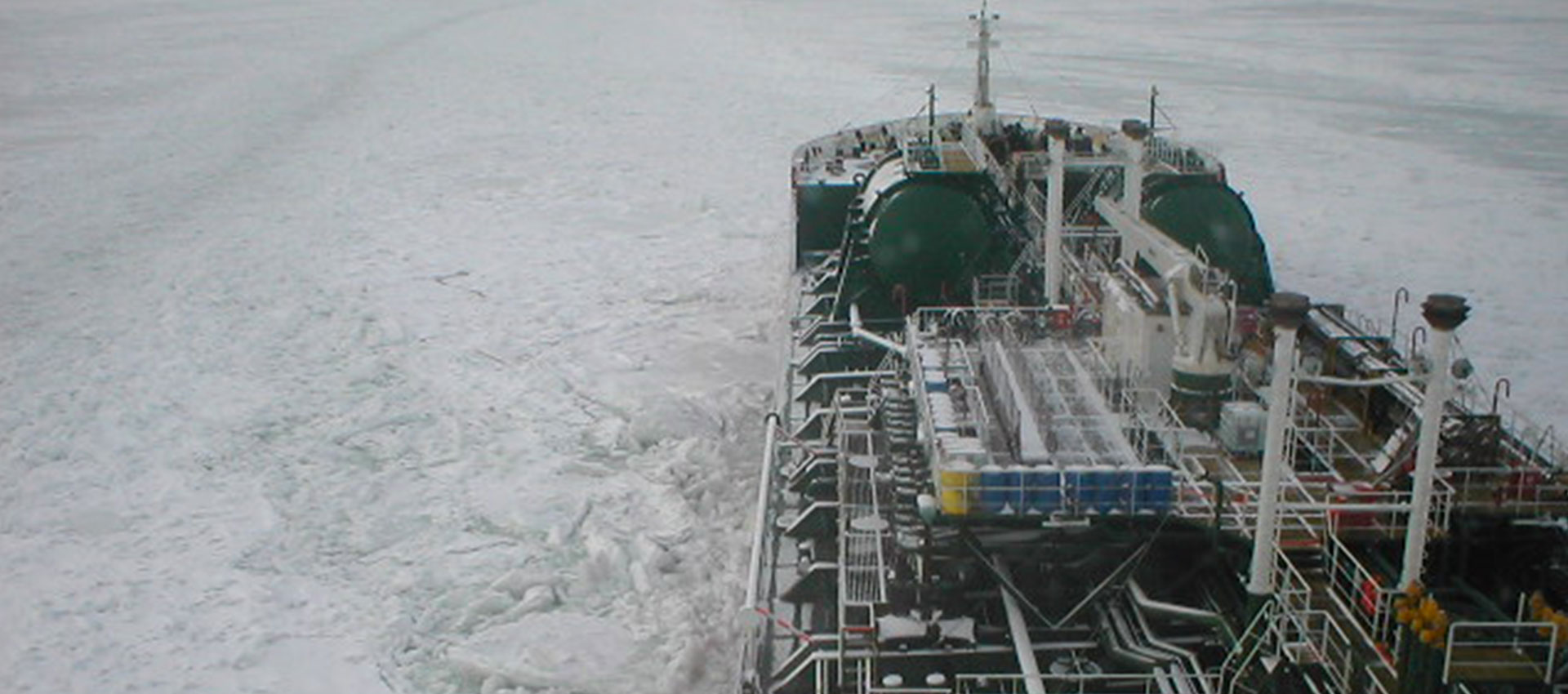

| Class notation |
*100-A-1.1 – NAV IL; Cst (chem) ESP; Cst (oil); ESP double Hull; * APS (1100-9,35->4000); EP2; *IAI; *IAP; *IAQ-1; *Ice class IA; *IIQ; INWATERSURVEY; NAU; P; SCC: SFI; STAR-MACH-PMS; VCS |
