| IMO |
9383443 |
| Call Sign |
I.C.C.G. |
| Type of Vessel |
IMO II |
| Year Built/Shipyard |
2008 – RMK Istanbul |
| L.O.A. |
m. 148,1 |
| L.B.P. |
m. 136,8 |
| Breadth |
m. 23,0 |
| Moulded depth |
m. 11,8 |

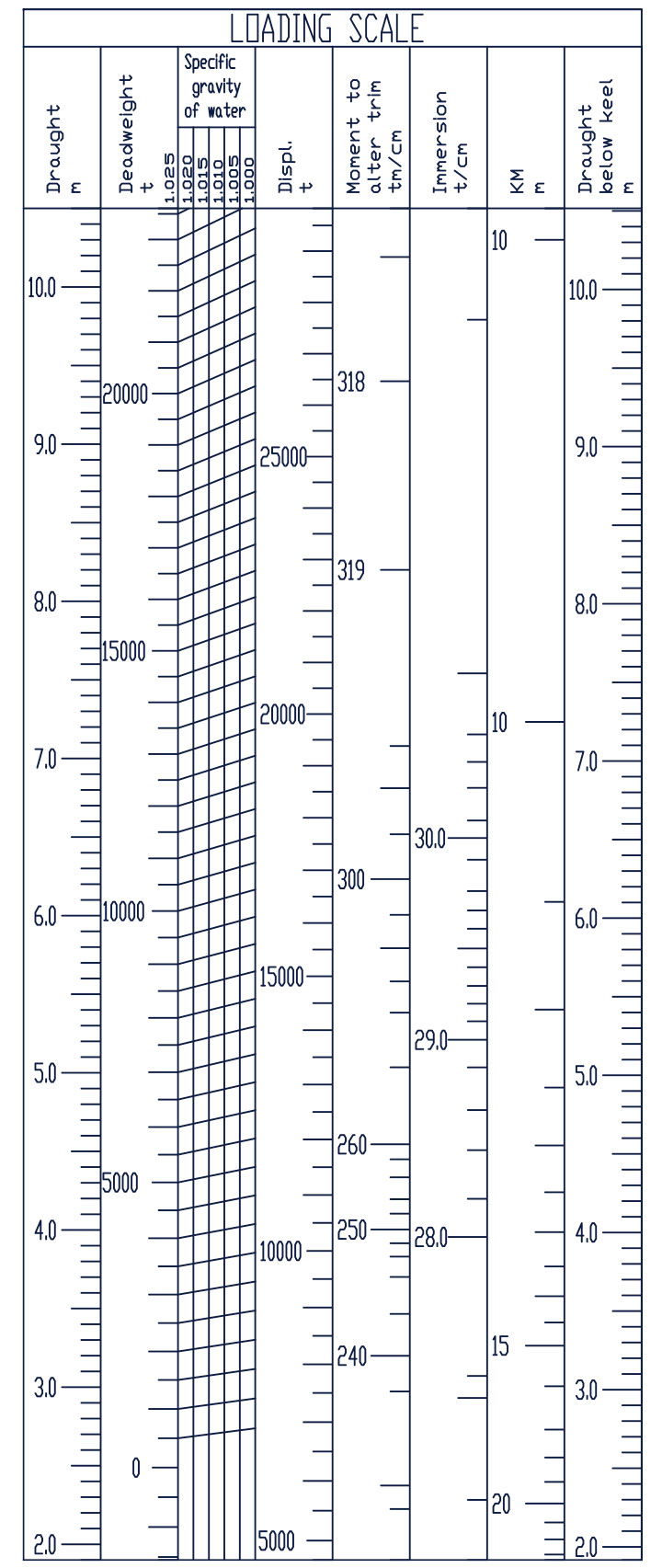

| Summer Draft |
m. 8,90 |
| Summer D.W.T. |
tonn 18.818 |
| Gross Tonnage |
tonn 12.008 |
| Net Tonnage |
tonn 5.718 |
| Type of tank coating |
Marine Line Coating |
| Class Register |
Rina |
| 100% Cargo tanks (with recovery and slop) |
m3 19.759,00 |
| 98% Cargo tanks (with recovery and slop) |
m3 19.363,82 |
| 100% Slop tank capacity |
m3 380,00 |
| 100% recovery tank capacity (9) |
m3 99,5 |
| 100% Segregate Ballast |
m3 8.505,20 |
| Max cargo specific gravity |
1,54 t/ m3 |
| Vapour return line manifold |
4 x 4” midship – 1 x 4” stern |
| 100% Bunker capacity |
F.O. m3 854,2 G.O. m3 252,5 |
| 100% Fresh water capacity |
m3 653,10 |

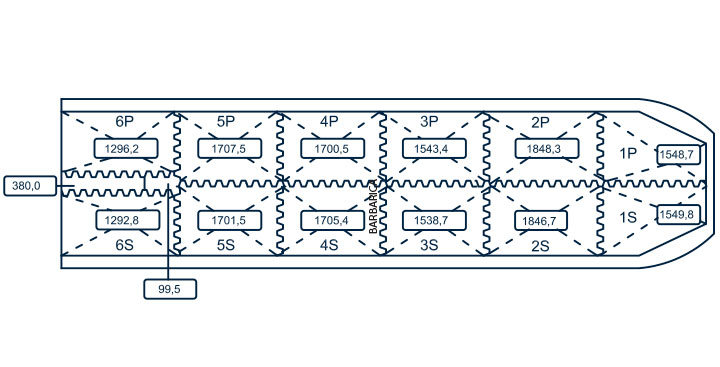

| Tank segregations |
9 (7 + slop + rec.) |
| Service speed |
15 Kts |

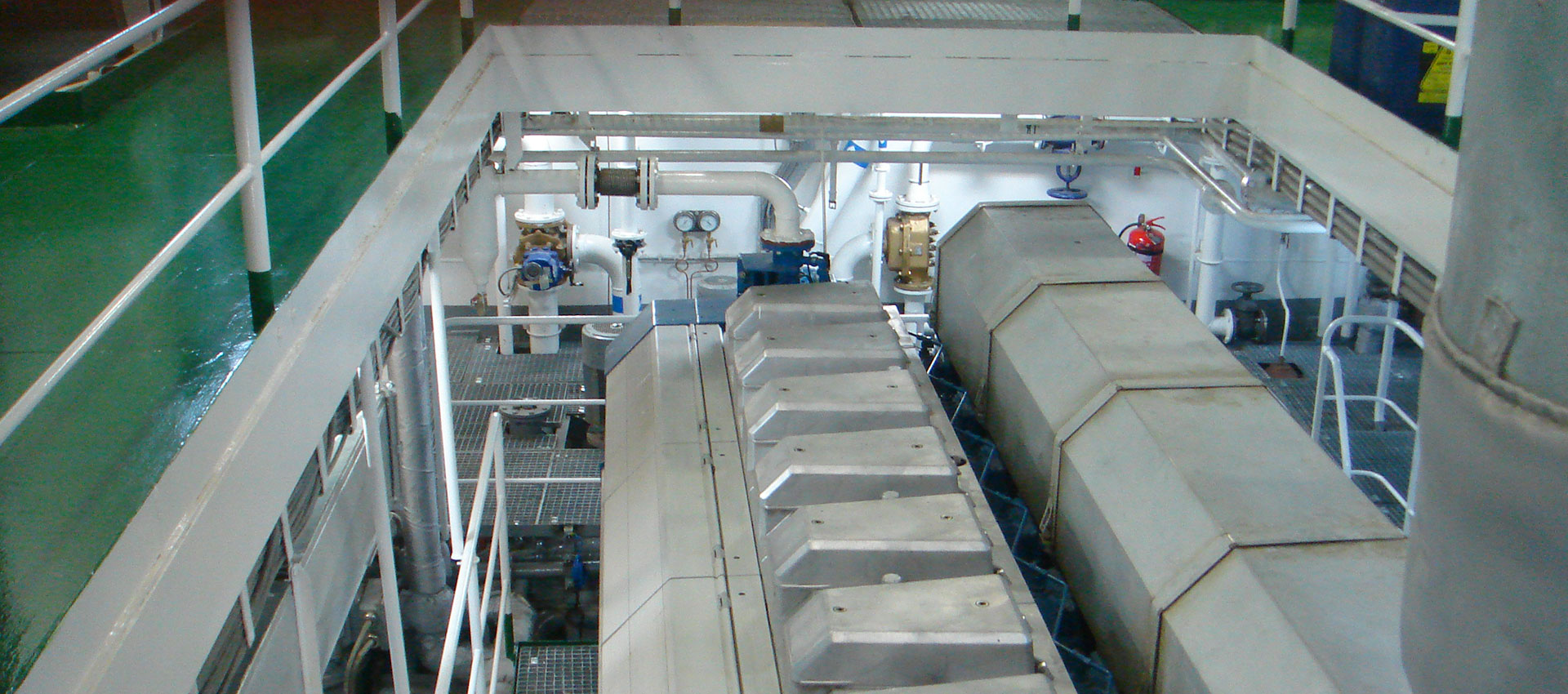

| Main Engine |
2 x Wartsila 8L32 x 4000 Kw each |
| Propeller system |
2 x controllable pitch |

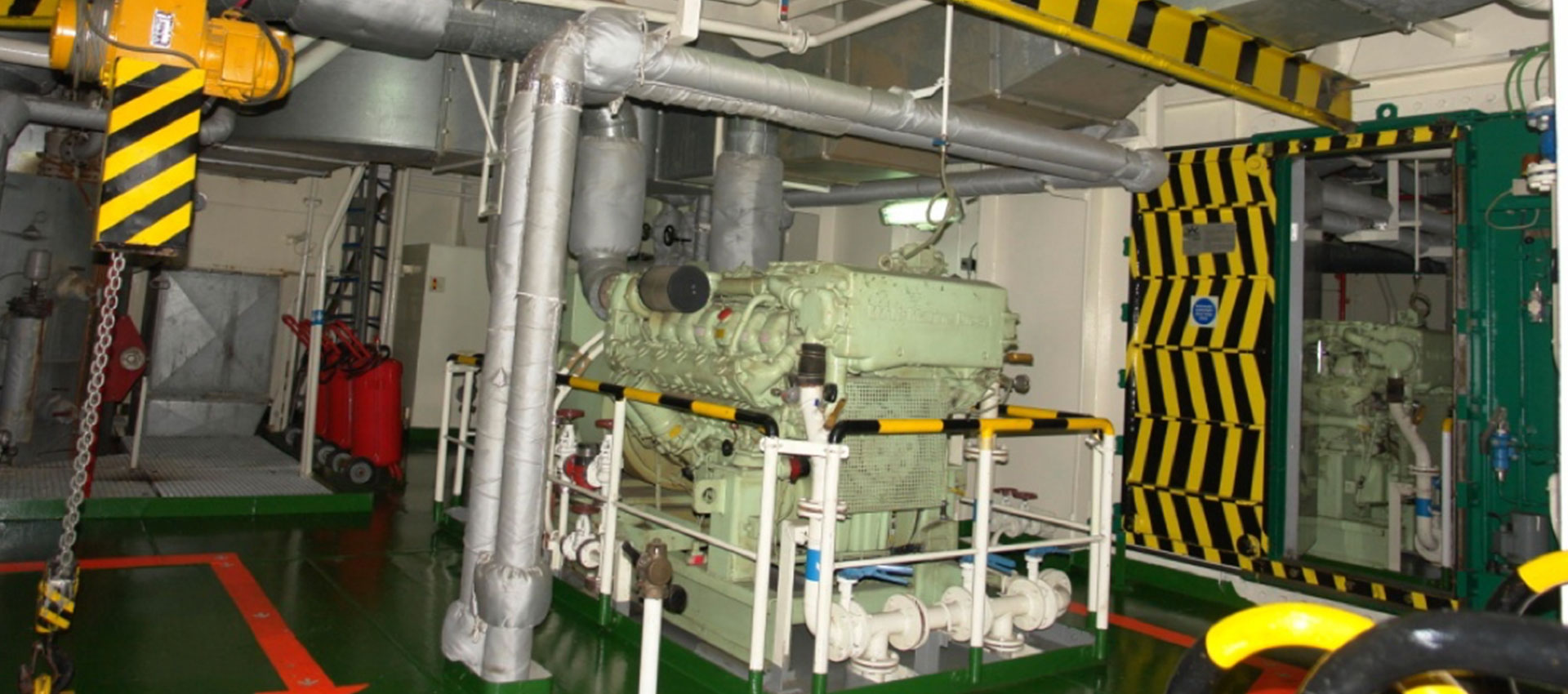

| Diesel generator |
2 x 620 Kw MAN |
| Shaft generators |
2 x 2800 KwA |
| Boilers |
2 x 4500 Kg/h steam type Kangrim |
| Economizer |
2 x 650 kg/h steam type Kangrim |
| Bow Thruster/Stern Thruster |
Bow 900 Kw |
| Max discharging rate |
2.100 m3 /h @ 110 MLC |
| Tank level / temperature system |
Saab Rosemont Radar System |
| Cargo heating |
Steam system/heating coils SS |
| Cargo tank cleaning system |
COW system with 1 line fresh water and 1 line sea water |
| Fixed Gas Detection System |
Cosilium Selesmar (%LEL) |
| I.G.S. |
N2 Generator 2.325 m3/h UNITOR |
| Cargo lines and valves materials |
Stainless steel |
| Stern lines |
2 x DN 200 + 1 x VRL |
| Cargo pumps |
FRAMO submerged Hydraulic Single stage Centrifugal 12 x 350 m3 /h at 135 mlc 2 x 150 m3 /h at 135 mlc |
| Cranes |
1 x 10 ton for cargo hose @ midship - 1 x 5 ton for service @ aft – |
| Class notation |
C * chenical tanker ESP; oil tanker ESP-double hull; unrestricted navigation; * AUT-IMS; *AUTPORT; *AUT-UMS; *AVM-IPS; CARGO CONTROL; GREEN STAr 2 DESIGN; ICE CLASS 1A;INERTGAS-C;U INWATERSRVEY; MANOVR; MON-SHAFT PMS; STAR-HULL-NB; VCS; FATIGUELIFE(25) |
