| IMO |
9334325 |
| Call Sign |
I.B.V.S |
| Type of Vessel |
IMO II |
| Year Built/Shipyard |
2007 – Celik Tekne Tuzla (Turkey) |
| L.O.A. |
m. 155,20 |
| L.B.P. |
m. 144,20 |
| Breadth |
m. 25,60 |
| Moulded depth |
m. 12,10 |
| Summer Draft |
m. 8,88 |
| Summer D.W.T. |
tonn 20.500 |
| Gross Tonnage |
tonn 14.701 |
| Net Tonnage |
tonn 6.228 |
| Type of tank coating |
International Interline 904 |
| Class Register |
Rina |
| 100% Cargo tanks (with recovery and slop) |
m3 21.596,85 |
| 98% Cargo tanks (with recovery and slop) |
m3 21.164,9 |
| 100% Slop tank capacity (6P/6S) |
m3 683,72 |
| 100% recovery tank capacity (6C) |
m3 314,56 |
| 100% Segregate Ballast |
m3 10.331,12 |
| Max cargo specifi c gravity |
1,54 t/ m3 |
| Vapour return line manifold |
4 x 4” midship – 1 x 4” stern |
| 100% Bunker capacity |
F.O. m3 971,53 G.O. m3 194,35 |
| 100% Fresh water capacity |
m3 148,55 |

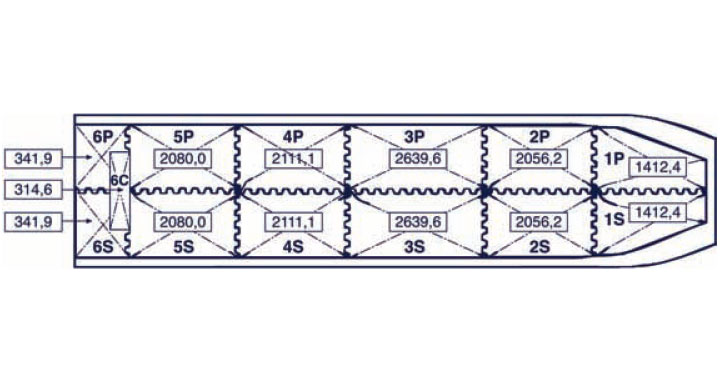

| Tank segregations |
8 (6 + slops + rec) |
| Service speed |
14 Kts |
| Main Engine |
2 x CATERPILLAR 6M32C x 3000 Kw |
| Propeller system |
2 x controllable pitch |
| Diesel generator |
2 x 530 Kw at 1200 rpm YANMAR |
| Shaft generators |
2 x 1700 Kw |
| Boilers |
2 x 8000 Kg/h steel prod. – oil fi red |
| Economizer |
2 x 800 Kg/h |
| Bow Thruster/Stern Thruster |
Bow 750 Kw |
| Max discharging rate |
2.300 m3 /h max |
| Tank level / temperature system |
Saab Rosemont Radar System |
| Cargo heating |
Steam System - Stainless steel coils |
| Cargo tank cleaning system |
COW fi xed type with 1 line fresh water and 1 line sea water |
| Fixed Gas Detection System |
Consilium (L.E.L – O2 – H2S) |
| I.G.S. / N2 |
3.000 m3 h / 1600m3h |
| Cargo lines and valves materials |
Stainless steel |
| Stern lines |
2 x DN 250 + 1 x VRL |
| Cargo pumps |
FRAMO submerged Hydraulic Single stage Centrifugal 10 x 385 m3 /h @ 120 mlc 3 x 150 m3 /h @ 120 mlc |
| Cranes |
1 x 10 tonn for cargo hose @ midship - 1 x 2.5 tonn for service @ aft – |
| Class notation |
C* oil tanker ESP - double hull ; chemical tanker ESP - @ AUT-PORT; @ AUT-UMS; @ AVM-DPS; CARGOCONTROL; FATIGUELIFE (30); GREEN STAR 3; ICE CLASS IA; INWATERSURVEY; PMS; STAR-HULL-NB; @ SYS-NEQ-1; VCS; WINTERIZATION (temp) -35 °C |
